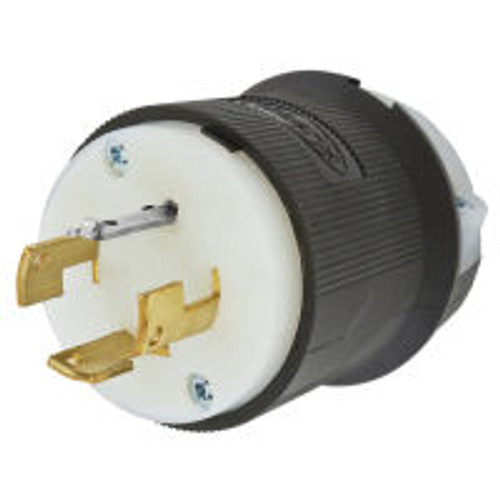

Non-NEMA 20 A twist-lock industrial male plug for 3-phase 120/208 VAC circuits, with a black and white nylon body.
- Rated 20 A, 3-phase WYE 120/208 VAC, 4-pole 4-wire
- Screw terminals, #16 AWG to #8 AWG stranded copper
- Cable range 0.350-1.150 in (9-29 mm)
- Nylon housing, brass blades, #10-32 brass terminal screws
- Listed to UL 498, certified to CSA C22.2 No.42
- Operating temperature: 75 C maximum continuous, -40 C minimum without impact
- Amperage:
- 20 A
- Voltage:
- 3 Phase WYE 120/208 VAC
- Poles:
- 4
- Wires:
- 4
- Connectivity:
- Screw terminals
- Wire Size:
- #16 AWG to #8 AWG (stranded copper only)
- Cable Range:
- 0.350-1.150 in (9-29 mm)
- Housing:
- Nylon
- Blades:
- Brass
- Color:
- Black and White
- Dimensions:
- 2.33 x 2.33 x 2.75 in
- Weight:
- 0.3 lb
- Certifications:
- UL 498, CSA C22.2 No.42, Fed. Spec. W-C-596
- Operating Temperature:
- 75 C max continuous, -40 C min without impact
