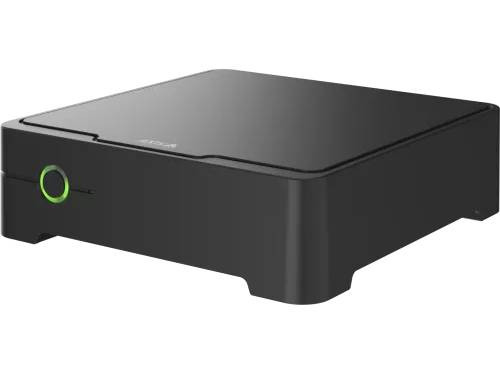

The AXIS S3008 Mk II is a compact network video recorder with a built-in 8-port PoE switch and a 4 TB surveillance-class hard drive, qualified for up to 8 video sources. It is designed for small surveillance sites using AXIS Companion or AXIS Camera Station.
Key features
- Built-in 8-port 10/100 PoE switch, IEEE 802.3af/at Type 1 Class 0-3
- 124 W total PoE budget
- 4 TB surveillance-class HDD included
- Up to 8 video sources, 160 Mbit/s total recording rate, H.264/H.265
- External 48 V DC 180 W mains adapter included
Specifications
| Access ports | 8 x 10/100 RJ-45 PoE |
|---|---|
| Uplinks | 1 x 10/100/1000 RJ-45 |
| PoE | IEEE 802.3af/at Type 1, Class 0-3 |
| PoE budget | 124 W |
| Management | AXIS Companion, AXIS Camera Station |
| Form factor | Compact desktop recorder |
| Power supply | External adapter 48 V DC, max 180 W (100-240 V AC) |
| Operating temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Dimensions (W x H x D) | 7.09 x 2.09 x 7.09 in |
| Weight | 2.98 lb |
| Warranty | Axis 5-year warranty (recorder and hard drive) |
Frequently asked questions
What is the PoE budget?
124 W total across the 8 PoE ports (IEEE 802.3af/at Type 1, up to Class 3).
How many cameras can it record?
It is qualified for up to 8 video sources at up to 160 Mbit/s total.
Is the power supply included?
Yes, an AXIS 48 V DC 180 W mains adapter is included.
Axis 5-year warranty (recorder and hard drive)
