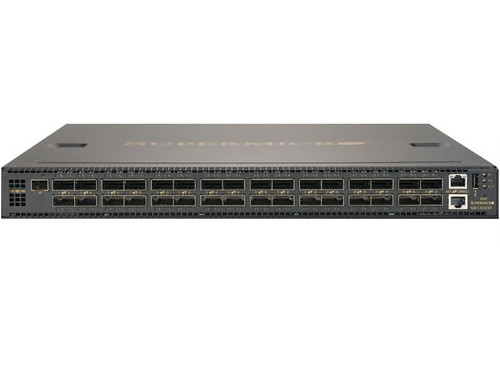

The SSE-C3632SR-SMCPL100G is a 1U Layer 2/3 top-of-rack switch with 32 QSFP28 ports configurable for 100GbE or 40GbE, built on the Broadcom Tomahawk chip, with regular (front-to-back) airflow. It is for data center leaf/spine deployments; it ships with Supermicro OS (SMIS) preloaded.
Key features
- 32x QSFP28 ports, 100GbE or 40GbE (up to 128x 25G with split cables)
- Broadcom Tomahawk, non-blocking wire-speed Layer 3 routing
- Intel Rangeley CPU, 4GB DRAM, 8GB SSD
- Two redundant hot-swappable 800W PSUs
- Supermicro OS (SMIS) preloaded
Specifications
| Access ports | 32x QSFP28 100/40GbE |
|---|---|
| Uplinks | 1x 10G SFP+ (datasheet) |
| Switching capacity | 3.2 Tbps |
| Layer | Layer 2/3 |
| Management | RJ-45 GbE management port, RJ-45 serial console, USB; Supermicro OS (SMIS) preloaded |
| Form factor | 1U rack-mount, Back-to-Front airflow |
| Power supply | 2x redundant hot-swap 800W AC (typical <650W) |
| License | Supermicro OS (SMIS) included |
| Operating temperature | 0 to 40 °C (32 to 104 °F) |
| Dimensions (W x H x D) | 17.08 x 1.73 x 20.47 in |
| Weight | 22.44 lb |
Frequently asked questions
Are power supplies included?
Yes, two redundant hot-pluggable 800W power supplies.
Can the ports run at 25G?
Yes, with split cables the switch supports up to 128x 25G ports.
What operating system does it run?
It comes with Supermicro OS (SMIS) preloaded.
Source: official Supermicro datasheet.
- Access ports:
- 32x QSFP28 100/40GbE
- Uplinks:
- 1x 10G SFP+ (datasheet)
- Switching capacity:
- 3.2 Tbps
- Layer:
- Layer 2/3
- Management:
- RJ-45 GbE management port, RJ-45 serial console, USB; Supermicro OS (SMIS) preloaded
- Form factor:
- 1U rack-mount, Back-to-Front airflow
- Power supply:
- 2x redundant hot-swap 800W AC (typical <650W)
- License:
- Supermicro OS (SMIS) included
