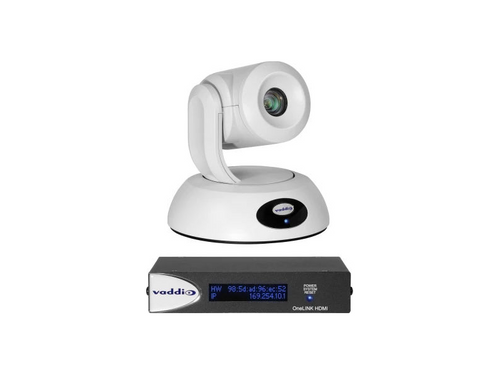

The Vaddio 999-99600-200W is a PTZ camera system pairing a white RoboSHOT 12E HDBT 12x camera with a OneLINK Bridge interface for HDMI, USB 3.0, IP streaming and 3G-SDI outputs. It is not a network switch; it is intended for conference rooms and lecture capture.
Key features
- 12x optical zoom, 1/2.5-type Exmor R CMOS sensor
- Up to 1080p/60
- 70.2 to 4.1 degree horizontal field of view
- OneLINK Bridge: HDMI, USB 3.0, IP streaming, 3G-SDI, audio mixer
- Power, video and control over one Cat-5e/6 cable up to 328 ft (100 m)
Specifications
| Operating temperature | 32 to 104 F (0 to 40 C) |
|---|---|
| Dimensions (W x H x D) | 7.05 x 6.94 x 6.75 in |
| Weight | 4.85 lb |
| Warranty | 2 years |
Frequently asked questions
What is included?
RoboSHOT 12E HDBT camera, thin-profile wall mount, IR remote, OneLINK Bridge interface, 48V power supply, EZCamera RS-232 adapter, connectors and a USB 3.0 cable.
What outputs are available?
HDMI, USB 3.0, IP streaming and 3G-SDI from the OneLINK Bridge.
How far can the camera be from the bridge?
Up to 328 ft (100 m) over a single Cat-5e/6 cable.
Source: official Vaddio datasheet.
