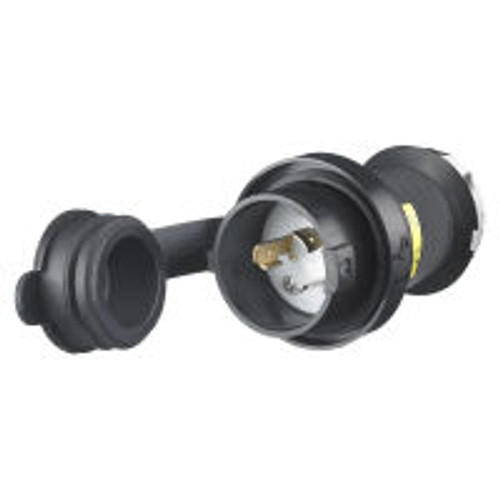

Hubbell HBL2611SW is a black and white watertight twist-lock safety-shroud male plug (NEMA L5-30P) rated 30 A, 125 V.
- Rating: 30 A, 125 V single phase, 2 poles, 3 wires with grounding
- Dimensions: 2.77 in x 2.77 in x 4.40 in; weight 0.55 lb
- Cord range: 0.325 in to 0.930 in; wire size #16 to #8 AWG stranded copper
- Environmental rating: watertight, suitable for Type 4, 4X, 12 and IP66
- Operating temperature: -40 C to 75 C continuous
- Amperage:
- 30 A
- Voltage:
- 125 V, single phase
- Poles:
- 2
- Wires:
- 3 (grounding)
- Connector:
- NEMA L5-30P
- Wire size:
- #16 to #8 AWG stranded copper
- Cord range:
- 0.325 in to 0.930 in
- Material:
- Composite: PBT housing, brass blades, Santoprene closure plug
- Color:
- Black housing with white clamps
- Dimensions:
- 2.77 in x 2.77 in x 4.40 in (L x W x H)
- Weight:
- 0.55 lb
- Maximum horsepower:
- 2
- Operating temperature:
- -40 C to 75 C continuous
- Certifications:
- UL Listed; CSA Certified
