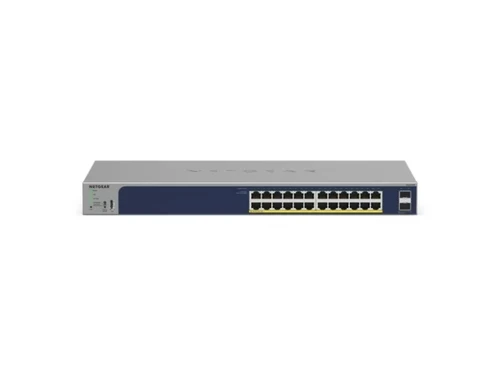

The NETGEAR GS728TXUP (GS728TXUPv3) is a 24-port Gigabit smart managed switch with 4 dedicated 10G SFP+ uplinks, 8 Ultra60 PoE++ and 16 PoE+ ports and a 420 W PoE budget. It is aimed at business networks that need 10G uplinks, L2+/L3 Lite features and optional NETGEAR Insight cloud management.
Key features
- 24 x Gigabit RJ-45 ports: 8 x PoE++ (Ultra60) + 16 x PoE+, 420 W budget
- 4 dedicated 10G SFP+ uplinks
- IPv4/IPv6 static routing (32 routes each)
- Web GUI, Lite CLI, SNMP and NETGEAR Insight management
- 256 VLANs and 16K MAC table
Specifications
| Access ports | 24 x 10/100/1000 RJ-45 PoE |
|---|---|
| Uplinks | 4 x 10G SFP+ |
| PoE | 8 x PoE++ (Ultra60) + 16 x PoE+ |
| PoE budget | 420 W |
| Switching capacity | 128 Gbps |
| Forwarding rate | 95.24 Mpps |
| Layer | L2+ / L3 Lite (IPv4/IPv6 static routing) |
| Stacking | Not supported (not listed) |
| Management | Web GUI (HTTP/HTTPS), Lite CLI, SNMP, NETGEAR Insight |
| Form factor | 1U rackmount / desktop, 2 fans |
| Power supply | Internal, fixed |
| Operating temperature | 0-50 °C (32-122 °F) |
| Dimensions (W x H x D) | 17.32 x 1.69 x 10.12 in |
| Weight | 8.51 lb |
| Warranty | NETGEAR Enterprise Limited Lifetime Warranty |
Frequently asked questions
What uplinks does it have?
4 dedicated 10G SFP+ ports.
Does it support PoE?
Yes: 8 x PoE++ (Ultra60) + 16 x PoE+, with a 420 W budget.
Can it be managed from the cloud?
Yes, through NETGEAR Insight, as well as the local web GUI.
Source: official NETGEAR datasheet.
NETGEAR Enterprise Limited Lifetime Warranty
- Access ports:
- 24 x 10/100/1000 RJ-45 PoE
- Uplinks:
- 4 x 10G SFP+
- PoE:
- 8 x PoE++ (Ultra60) + 16 x PoE+
- PoE budget:
- 420 W
- Switching capacity:
- 128 Gbps
- Layer:
- L2+ / L3 Lite (IPv4/IPv6 static routing)
- Stacking:
- Not supported (not listed)
- Management:
- Web GUI (HTTP/HTTPS), Lite CLI, SNMP, NETGEAR Insight
- Form factor:
- 1U rackmount / desktop, 2 fans
- Power supply:
- Internal, fixed
